GIGABYTE B840M EAGLE WIFI6 Micro ATX (mATX) AMD Gaming Motherboard | AMD AM5 Socket

Technical Specs :-

𝐂𝐏𝐔 :

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

𝐂𝐇𝐈𝐏𝐒𝐄𝐓 :

AMD B840

𝐌𝐄𝐌𝐎𝐑𝐘 :

2x DDR5 UDIMM, Maximum Memory Capacity 128GB

Memory Support DDR5 7600 – 5600 (OC) MT/s

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXPO / XMP

𝐕𝐈𝐃𝐄𝐎 𝐎𝐔𝐓𝐏𝐔𝐓 :

1x HDMI2.1

1x DisplayPort1.4

𝐄𝐗𝐏𝐀𝐍𝐒𝐈𝐎𝐍 𝐒𝐋𝐎𝐓 :

1 x PCI Express x16 slot (PCIEX16) , Supporting PCIe 4.0

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4

𝐀𝐔𝐃𝐈𝐎 :

Realtek® Audio CODEC

𝐋𝐀𝐍 :

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

𝐖𝐈𝐑𝐄𝐋𝐄𝐒𝐒 𝐂𝐎𝐍𝐍𝐄𝐂𝐓𝐈𝐕𝐈𝐓𝐘 :

Realtek® Wi-Fi 6 RTL8851BE

Supports Bluetooth® 5.3*

𝐒𝐓𝐎𝐑𝐀𝐆𝐄 :

1x M.2 Up To PCI-E 4.0

4x SATA 6G

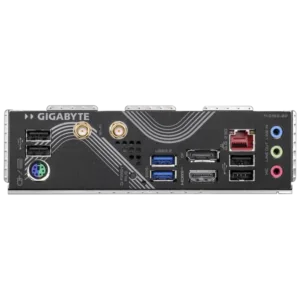

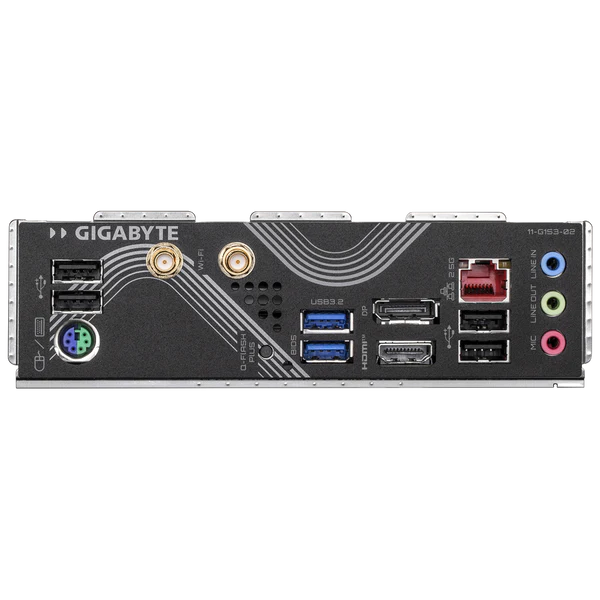

𝐑𝐄𝐀𝐑 𝐈/𝐎 :

1 x PS/2 keyboard/mouse port

4 x USB 2.0/1.1 ports

1 x DisplayPort (Note)

1 x HDMI port (Note)

1 x Q-Flash Plus button

2 x USB 3.2 Gen 1 ports

1 x RJ-45 port

2 x SMA antenna connectors (2T2R)

3 x audio jacks

𝐅𝐎𝐑𝐌 𝐅𝐀𝐂𝐓𝐎𝐑 :

Micro-ATX (mATX)
